The Ultimate in Convenience
- Uses the very latest 802.15.4 DSSS wireless protocol at 2.3 GHz for the ultimate in security and reliability.
- Power consumption is so low the batteries only need to be changed once a season or even less.
- No cables to work around. Transmitters are completely enclosed inside the pads for protection. No antennas to knock off, no external modules dangling off the side.

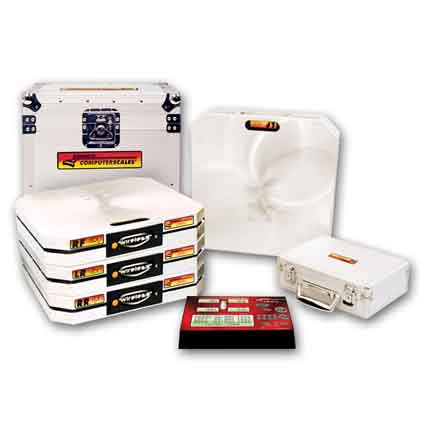

- System includes Wireless control box, set of 4 CNC Machined 15" x 15" low profile single load cell scale pads - 1500 lbs per pad capacity and pad storage box for easy transportation and safe storage.
Wireless DXI™ Control Box - Operates just like our cable systems

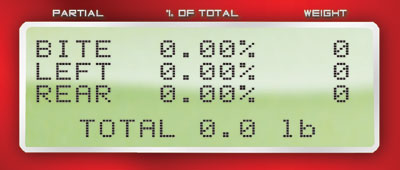

This Professional model shows all 4 wheel weights on separated displays for easiest viewing. Also shows ALL partial % and weights on a separate 4 line display that can be easily customized to your preferences. An easy-to-use Memory stores 8 setups with instant recall. - Simple to use - Just turn it on
The connection uses the very latest 802.15.4 DSSS wireless protocol at 2.3 GHz and is secure and virtually "unhackable". Power consumption is so low that no charger is needed. Change the batteries only once a season or less!
Fully Machined CNC Pads
Longacre scale pads have elaborate computer designed internal strengthening ribs for maximum rigidity. These new pads are fully CNC machined to a dead flat finish - within just .005"
Transmitters are completely enclosed inside the pads. No antennas to knock off or external modules dangling on the side!
High Rigidity Pads
Most of our scale pads are produced by a new state-of-the-art process that gives high material strength plus allows intricate internal ribs that give you as rigid a pad as possible for the most accurate weights.
Pad Storage Box
Pad storage box for easy transport and safe storage.
NIST Certification
Load cells and scale systems from Longacre Racing Products are tested and calibrated to the standards traceable to the National Institute of Standards and Technology (NIST) and are part of a comprehensive measurement assurance program for ensuring continued accuracy and measurement traceability.
Testing is accredited by the National Institute of Standards and Technology (NIST) through the National Voluntary Laboratory Accreditation Program (NVLAP) for specific scope of accreditation under lab code 200446-0. This laboratory meets the requirements of ISO/IEC 17025 and ANSI/NCSL Z540-1.
Accuracy is equal to .1%.
| Specifications |
| |
| Control Box |
| | Model: | Wireless DXI™ |
| | Memory: | 8 slot |
| | Batteries: | 6 AA |
| | Case: | Silver |
| Pads |
| | Size: | 15" x 15" x 2 1/2" |
| | Capacity: | 1500 lb per pad |
| | Batteries: | 3 AA per pad |
| | Finish: | CNC Machined |
| | Load cells per pad: | 1 |
